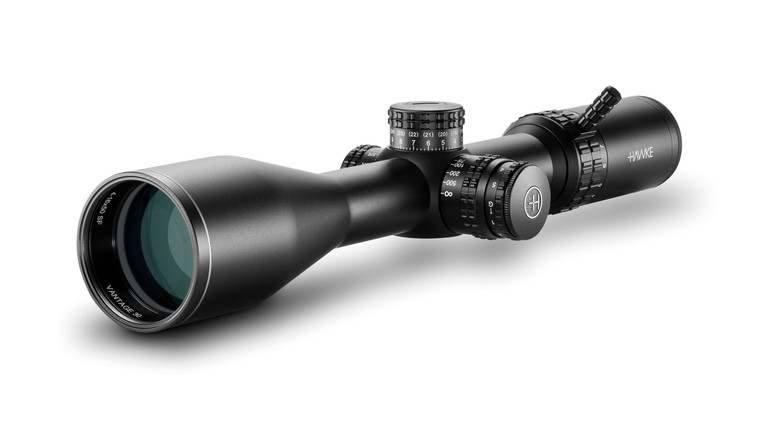

Vantage HD 30 4-16x50 SF LR2 Dot Reticle
Sale

Vantage HD 30 4-16x50 SF LR2 Dot Reticle

HAWKE
SKU:
14410
Availability:
Free Shipping. Will Come Direct from the Importer. Call me if want me to check on Availability before Ordering.
$815.00 $775.00
Current Stock:
Adding to cart… The item has been added
Description

Redefining Value Optics

Premium optics for a wide range of disciplines. Dependable, accurate, affordable.

All models in the Vantage HD 30 range feature Hawke’s H2 optics, fully multi-coated with 11 layers for exceptional light transmission, which boast a stunning wide-angle field of view and a 3.5 inch eye relief. Featuring red and green illumination with a stepped rheostat, the Vantage HD 30 delivers a crisp, daylight-visible central aim point. Side Focus adjustment allows for parallax and focus correction from 10 yards to infinity.

The supplied XL removable zoom magnification throw lever allows you to make rapid and effortless zoom magnification adjustments, ideal when speed is essential, or when wearing gloves.

  • 30mm Monotube Chassis
  • Exposed, Locking Elevation & Windage
  • Illuminated Glass Reticle
  • 11 Layer Fully Multi-Coated Lenses
  • 3.5 Inch Eye Relief

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke Warranty.

LR2 Dot (16x)

A variant of the classic L4 reticle, the LR2 Dot uses a more open outer post design to keep more of the target visible while aiming and offers extra aim points for holdover. The bright center dot gives a sharp aim point for quick reference and target acquisition. The thick outer posts make visibility easy when hunting in low-light conditions. A fine upper post doesn't obstruct your view of the target.

Extra holdover aim points are included on the fine lower post to give graduation and accuracy when shooting at longer distances. The LR2 Dot reticle is the second generation of LR Dot style reticles from Hawke and has updated aim point subtensions and BDC to complement modern centerfire cartridges and muzzle speeds.

  • More Reticle Information
Line Drawing

Scope Tube
30mm
Optical System
System H2
Magnification
4 - 16x
Objective Lens
50mm
Reticle
LR2 Dot (16x)
Illumination
5 Levels (Red & Green)
Illumination Control
Stepped Rheostat
Parallax
Side Focus
Focal Plane
SFP (Second Focal Plane)

Field of View
28.8 - 7.8ft @100yds
9.6 - 2.6m @100m
Field of View (°)
5.5 - 1.5
Eye Relief
3.5in
90mm
PX/Focus (Error free from)
10yds - ∞
9m - ∞
Exit Pupil
0.49 - 0.12″
12.5 - 3.1mm
Click Value
1⁄ 4MOA
Elevation Turret Clicks (max)
95 MOA
Windage Turret Clicks (max)
95 MOA

Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip with Removable Zoom Lever
Lens Coating
Fully Multi-Coated - 11 Layers

Length
13.7in
347mm
Weight
26.1oz
740g

Turret Type (Elevation)
Exposed, Locking, Resettable

Turret Type (Windage)
Exposed, Locking, Resettable
