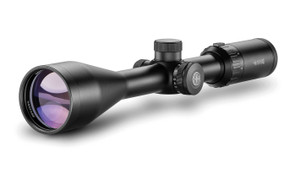

Vantage IR 4-12x50 Mil Dot IR Reticle
HAWKE
$457.00
An extensive range of scopes to suit all calibres and disciplines.
All Vantage riflescopes feature our H2 optics in a variety of configurations.
IR models feature precision glass etched reticles with multi-stage illumination in both red and green.
- Capped Low-Profile Turrets
- 1 Inch Mono-tube chassis
- Illumination
- 11 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
Hawke Warranty.
Mil Dot Illuminated Reticle
The classic Mil Dot features multiple aim points for hold-over and hold-under. Accurate mil spacing on 10x, featuring 4 Mil Dots in each direction. Glass etched reticle that has 5 brightness levels of illumination in both red and green, or can be turned off for a solid black reticle.
Objective Lens
50mm
Reticle
Mil Dot IR
Parallax
Fixed
Magnification
4 - 12x
Optical System
System H2
Focal Plane
SFP (Second Focal Plane)
Scope Tube
1 Inch
Illumination
5 Levels - Red/Green
Field of View
26.2 - 8.7ft @100yds
8.7 - 2.9m @100m
Field of View (°)
5 - 1.7
Eye Relief
3.5in
90mm
PX/Focus
100yds
91m
Exit Pupil
0.49 - 0.17″
12.5 - 4.2mm
Turret Type
Capped
Turret Caps
YES
Click Value
1⁄ 4MOA
Elevation Turret Clicks (max)
80 MOA
Windage Turret Clicks (max)
80 MOA
Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip
Lens Coating
Fully Multi-Coated - 11 Layers
Length
13.4in
341mm
Weight
17.5oz
497g
-
SUPPLIED WITH
- Box
- Instruction Manual
- Lens Covers
- Lens Cloth
- CR2032 Battery
