NV007SP24-20/LRF | PARD NV007SP2 4K-LRF Digital Night Vision Clip-on Attachment
PARD
$949.00

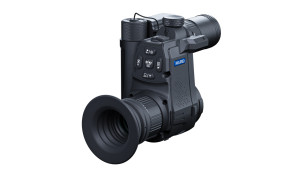

PARD NV007SP2 4K-LRF Digital Night Vision Clip-on Attachment
Transform your daylight optic into a powerful night vision system with the PARD NV007SP2 4K-LRF Digital Night Vision Clip-on Attachment. Featuring a high-performance 4K CMOS sensor and an upgraded 1600 x 1200 OLED display, this unit delivers stunning clarity and detail, even in challenging lighting conditions. Designed for medium to long-range observation, the NV007SP2 offers easy clip-on mounting via the included eyepiece adapter—making it a versatile upgrade for a wide range of optical systems. This LRF model is equipped with a precise 1,000m laser rangefinder for instant distance measurements, and can be paired with an optional 850nm IR illuminator for enhanced visibility in complete darkness.
Specifications
| Sensor | ||
| Type | CMOS | |
| Resolution(pixel) | 3840*2160 | |
| Pixel size(μm) | 2 | |
| Sensitivity(lux) | 0.001 | |
| Frame rate(Hz) | 30 | |
| Image Engine | PARD VLEA | |
| Optics | ||
| Objective lens (Focal length/mm) | 20 | |
| Optical Magnification(x) | 2 | |
| Digital zoom(x) | 1/2/3 | |
| Field of view (°) | Horizontal | 14.9 |
| Vertical | 11.2 | |
| Diagonal | 18.6 | |
| Field of view (m @100m) |
Horizontal | 26.2 |
| Vertical | 19.6 | |
| Focus range | 3cm-∞ | |
| Eye Relief(mm) | 35 | |
| Diopter adjustment(D) | ±5D | |
| IR Illuminator | ||
| IR power(W) | 5 | |
| IR illuminating level | 3 Levels | |
| IR distance(m) | 350 | |
| IR Wavelength(nm) | 850/940 | |
| Display | ||
| Type | OLED | |
| Resolution(pixel) | 1600*1200 | |
| Color mode | Color/Black&White | |
| Video&Photo | ||
| Photo Resolution(pixel) | TBD | |
| Photo Format | .JPG | |
| Video Resolution(pixel) | TBD | |
| Video Format | .mp4 | |
| Main function | ||
| LRF | Yes | |
| Auto recording | Yes | |
| Loop recording | Yes | |
| Time stamp | Yes | |
| Record audio | Yes | |
| Exposure compensation | Yes | |
| Storage(GB) | Micro SD card (Max. 128GB) | |
| Connections | ||
| USB Type-C | Yes | |
| WiFi | Yes | |
| Supported Apps | PardVision2 | |
| Power Supply | ||
| Battery type | Lithium Ion 18650*1 | |
| Output voltage(V) | 3.7 | |
| Operating time(h,max) | 6 | |
| External power supply(V) | Type-C | |
| Material | ||
| Housing | AL6061 & Composite | |
| Objective lens | Glass | |
| Measurement | ||
| Product dimension(L x W x H, mm) | TBD | |
| N.W/pcs(with battery, g) | TBD | |
