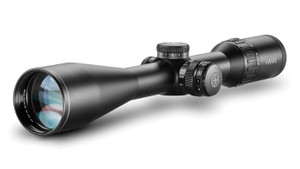

Endurance 30 WA SF 6-24x50 LR Dot 16x Reticle

HAWKE
SKU:
16360
Availability:
FREE SHIPPING, WILL COME DIRECT FROM IMPORTER.
$860.00
Current Stock:
Adding to cart… The item has been added

Designed for all hunting disciplines - from varmint to big game.

All models feature Hawke's H5 optics which boasts a stunning 24° ultra-wide field of view with generous 100mm eye relief.

The H5 illumination system features multi-LED technology for high intensity illumination.

  • Exposed, Locking Turrets
  • 30mm Mono-tube chassis
  • Side Focus
  • Illumination
  • Ultra-wide Angle 24° FOV
  • High volume eyebox
  • 100mm eye relief
  • Multi-LED high intensity reticle
  • High grade, low dispersion Crown glass
  • 18 layer Fully Multi-Coated lenses
  • High torque rubber zoom ring
  • Fast focus eyebell

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke Warranty.

LR Dot Reticle

The LR Dot reticle was developed around a typical centrefire trajectory, like the .308 Winchester round, which is popular around the world for shooting fairly large game. It also suits some of the faster bullets that might be used for hunting foxes and similar quarry.

This design also makes it suitable for European shooters who might prefer a metric set of figures and therefore to zero their rifle in for 100 metres on the centre crosshair and use the lower aim points for 200, 300, 400 and 500 metres. A useful tip: at 16x magnification, the thick posts to the right and left of the centre dot would bracket the body length of a Roe deer at 100yds; a popular sized animal to hunt with this type of reticle.

  • More Reticle Information
Line Drawing

Objective Lens
50mm
Reticle
LR Dot (16x)
Parallax
Side Focus
Magnification
6 - 24x
Optical System
System H5
Focal Plane
SFP (Second Focal Plane)
Scope Tube
30mm
Illumination
6 Levels with Off Positions In-between - Red

Field of View
20.7 - 5.1ft @100yds
6.9 - 1.7m @100m
Field of View (°)
3.9 - 1
Eye Relief
4in
102mm
PX/Focus
15yds - ∞
14m - ∞
Exit Pupil
0.33 - 0.08″
8.3 - 2.1mm

Turret Type
Exposed
Turret Caps
N/A
Click Value
1 4MOA
Elevation Turret Clicks (max)
75 MOA
Windage Turret Clicks (max)
75 MOA

Ocular Type
Fast Focus
Power Selector
Rubber Coated Posi-Grip
Lens Coating
Fully Multi-Coated - 18 Layers

Length
14.5in
369mm
Weight
22.7oz
644g
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Reticle Booklet
  • Lens Cloth
  • Lens Covers
  • 4″ Sunshade
  • CR2032 Battery
