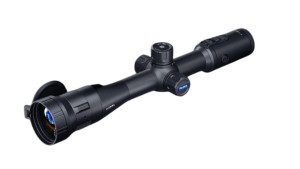

PA4Q-35/LRF | Pard Pantera Q 480 (35mm with LRF) Thermal Riflescope

PA4Q-35/LRF | Pard Pantera Q 480 (35mm with LRF) Thermal Riflescope

PARD
SKU:
PA4Q-35/LRF
Availability:
WILL COME DIRECT FROM SUPPLIER ANY DELAYS YOU WILL BE NOTIFIED. FREE SHIPPING. CALL TO CHECK ON AVAILABILITY BEFORE ORDERING.
$3,399.00
Current Stock:
Adding to cart… The item has been added
Description

  • Pard Pantera Q 480 (35mm with LRF) Thermal Riflescope

    Experience advanced thermal imaging performance with the PARD Pantera Q 480 (35mm with LRF) — a feature-rich thermal riflescope offering crisp detection, reliable rangefinding, and intelligent shooting tools in a compact design. Built around a sensitive 480×360 VOx sensor and equipped with a 1000m laser rangefinder, this model balances powerful optics with a wide field of view for effective mid-to-long-range hunting and tactical use.

    Features

    • 480×360 VOx thermal sensor with 12µm pixel size and ≤18mK NETD sensitivity
    • 35mm all-glass multi-coated lens with 2.6x optical and up to 8x digital zoom
    • OLED display with 1600×1200 resolution and 6 selectable reticle styles
    • Integrated 1000m laser rangefinder, ballistic calculator, gyroscope, and PIP mode
    • Supports photo/video capture with recoil-activated and loop recording functions
    • Rugged IP67-rated aluminum housing with ≤6-hour runtime on a single 21700 battery

    Specifications

    Model Pantera 480 Q Pantera 640 Q
    Sensor
    Type Uncooled VOx(vanadium oxide) Uncooled VOx(vanadium oxide)
    Resolution(pixel) 480*360 640*512
    Pixel size(µm) 12*12 12*12
    NETD(mK) ≤18mK（0.018℃） ≤18mK（0.018℃）
    Frame rate(Hz) 50 50
    Detection distance(m) 1800/2600 2600
    Optics
    Objective Lens (Focal length/mm) 35/50 50
    Optical Magnification(x) 2.6/3.7 3
    Digital Zoom(x) 2/4/6/8 2/4/6/8
    Field of view(°) Horizontal 9.4/6.6 8.8
    Vertical 7.1/4.9 7
    Diagonal 11.7/8.2 11.2
    Field of view
    (m @100m)    		 Horizontal 16.5/11.5 15.4
    Vertical 12.3/8.6 12.3
    Focus Range 10m ~ ∞ 10m ~ ∞
    Eye Relief(mm) 60 60
    Diopter Adjustment(D) -5~5 -5~5
    Display
    Type OLED OLED
    Resolution(pixel) 1600*1200 1600*1200
    Reticle Style 6 6
    Reticle Color Red/White/Yellow/Green Red/White/Yellow/Green
    Scene Mode City/Rain/Forest City/Rain/Forest
    Image mode WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
    Photo / Video
    Photo Resolution(pixel) TBD TBD
    Photo Format .JPG .JPG
    Video Resolution(pixel) TBD TBD
    Video Format .mp4 .mp4
    Storage(GB) Micro SD card(Max. 128) Micro SD card(Max. 128)
    Image Engine Pard IREA Pard IREA
    Main function
    LRF detection range(m/yd) 1000/1200 1000/1200
    Ballistic Calculator Yes Yes
    PIP Yes Yes
    Hot Track Yes Yes
    Gyroscope Yes Yes
    Recoil-activated recording Yes Yes
    Loop Recording Yes Yes
    E-compass Yes Yes
    Shutter Mechanical Shutter Mechanical Shutter
    Firmware Upgrade Yes Yes
    Connections
    USB Tpye-C Yes Yes
    HDMI Output Yes Yes
    WiFi Yes Yes
    Supported Apps PardVision2 PardVision2
    Power Supply
    Battery Type Lithium Ion 21700*1 Lithium Ion 21700*1
    Output Voltage(V) 3.7 3.7
    Operating Time(h) ≤6 ≤6
    External power supply(V) Type-C Type-C
    Environmental characteristic
    Degree of protection IP67 IP67
    Operating Temp(°C/°F) -30 ~ +55 / -22 ~ +131 -30 ~ +55 / -22 ~ +131
    Recoil Resistance(J) 6000 6000
    Material
    Housing Aluminum Alloy Aluminum Alloy
    Objective Lens All-glass multi-coated lens All-glass multi-coated lens
    Measurement
    Product Dimension/with LRF(L * W * H, mm) TBD TBD
    N.W/pcs(with battery, g) TBD TBD
