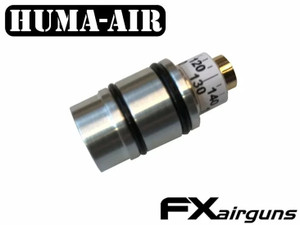

Huma-Air Tuning Regulator For The FX Wildcat MKII
This FX Wildcat MKII (MK2) tuning regulator made by Huma-Air is specially designed as a “one on one” replacement for the factory regulator. (standard or 2019 AMP model)
It can be placed into the pressure tube within a minute and replaces the original regulator. The Huma-Air FX Wildcat regulator is very consistent over the total pressure range of the pressure tube and solves all the known issues of the original regulator.
Made of high grade aircraft aluminium in combination with bronze components. For the real power lovers, the Huma-Air replacement AMP regulater is tested with .30 JSB 44.75 grain pellets at an average velocity of 942 ft/s, and JSB 50 grain pellets at an average velocity of 906 ft/s
The benefits of the Huma-Air, FX Wiltcat MKII tuning regulator are:
- Higher accuracy of your rifle due to the elimination of the pelletspeed fluctuations
- A constant pellet speed over the full working pressure range.
- Maximum use of the air volume due to our ultra compact build.
- It will give you a better shotcount and a full flat shotstring immediately.
- Adding a regulator to your airrifle will probably give you the biggest benefit in the tuning process.
- Often the rifle will make less noise due to better balance in air usage
When you order your Huma-Air, FX Wildcat MKII tuning regulator you will receive:
- Your regulator preset to your own wishes.
- A pressure scale in Bar on the regulator, for fine-tuning or re-adjustment.
- We will include a “Huma-Air Regulated” breech sticker.
- Fitting instructions as pdf download.
Huma-Air Quality Control
Huma Air regulators are CNC produced out of high grade aircraft aluminum and bronze. To guarantee a perfect product, every regulator is individually assembled, tested in a computerized simulation program and adjusted to the requested pressure.
We only use high-end materials and our belleville springs are designed for critical applications to achieve the highest repeat accuracy. This gives our regulators a repeat cycle less than 1% difference.
Huma Air provides a 2-year warranty on their regulators. Excluded from warranty are shipping costs and parts that are subject to normal wear and tear such as o-rings and valve discs.
Pressure settings of the Huma-Air, FX Wildcat MKII Tuning Regulator
The tuning regulator comes preset on the most common pressure setting, or we will adjust it according to your personal wishes. It is also equipped with a clear pressure scale label, so you can very easy re-adjust or fine tune the pressure setting suitable to your wishes.
Our advice for choosing the best pressure range for your Huma-Air regulator:
- Low pressure range: 60-110 bar for 16 Joule / 12 ft/lbs models.
- High pressure range: 100-170 bar for all FAC rifles from .177, .22 and .25.
