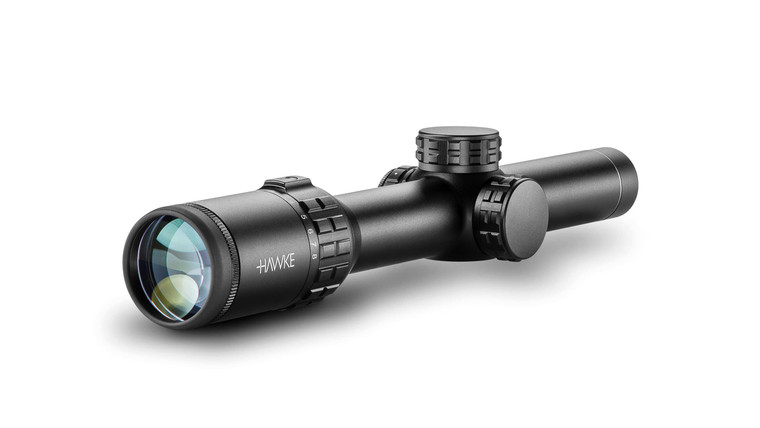

Frontier 30 FD 1-8x24 LRX Tactical FD 8x Reticle

HAWKE
SKU:
18406
Availability:
FREE SHIPPING, WILL COME DIRECT FROM IMPORTER.
$1,650.00
Current Stock:
Adding to cart… The item has been added

All models feature Hawke’s H7 optics with high zoom ratio, supreme clarity and light transmission.

Supreme accuracy for rifle shooting, driven and hunting applications.

  • Capped Low-Profile Turrets
  • 30mm Mono-tube chassis
  • Fibre Optic Illumination
  • Wide Angle FOV
  • High volume eyebox
  • 100mm eye relief
  • High grade, low dispersion Crown glass
  • 21 layer Fully Multi-Coated lenses
  • Zoom magnification throw lever (removable)
  • Fast focus eyebell with lock ring
  • Supplied with Professional metal flip-up covers.

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke Warranty.

LRX - Tactical FD (8X)

Working with your bullet's trajectory the LRX - Tactical FD (8x) reticle, exclusively from Hawke, provides usable aim points for AR-pattern rifles. The LRX - Tactical FD (8x) is built specifically around the ballistics of 5.56 cartridges, making holdover accuracy more possible than ever before.

The bright fiber optic center dot gives a sharp aim point for quick reference and target acquisition. Extra holdover aim points are included on the fine lower post to give graduation and accuracy when shooting at longer distances.

Initial zero can be performed at 50 yards. This will provide good accuracy using only the central aim point out to 200 yards. For the best accuracy and proper use of the BDC, zero should be confirmed at 200 yards and adjusted accordingly.

The BDC reticle can also be used for other cartridges and ammunition by adjusting the magnification. Alternatively, the aim points can be calibrated for distances in meters by reducing the magnification slightly.

  • More Reticle Information

Objective Lens
24mm
Reticle
LRX - Tactical FD (8x)
Parallax
Fixed
Magnification
1 - 8x
Optical System
System H7
Focal Plane
SFP (Second Focal Plane)
Scope Tube
30mm
Illumination
11 Levels - Red

Field of View
116.3 - 14.6ft @100yds
38.8 - 4.9m @100m
Field of View (°)
21.9 - 2.8
Eye Relief
4in
102mm
PX/Focus
100yds
91m
Exit Pupil
0.94 - 0.12″
24 - 3mm

Turret Type
Capped
Turret Caps
YES
Click Value
1 2MOA
Elevation Turret Clicks (max)
300 MOA
Windage Turret Clicks (max)
300 MOA

Ocular Type
Locking Fast Focus
Power Selector
Knurled Posi-Grip with Removable Zoom Lever
Lens Coating
Fully Multi-Coated - 21 Layers

Length
10.9in
278mm
Weight
18.3oz
520g
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Reticle Booklet
  • Lens Cloth
  • Pro Flip-Up Covers
  • Zoom Lever
  • Hex Key (Zoom Lever)
  • CR2032 Battery
