SPECIAL ORDER

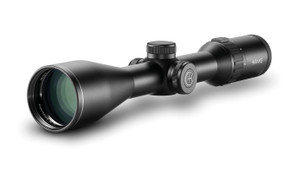

Endurance 30 FD 3-12x56 LR FD 12x Reticle

HAWKE
SKU:
16430
Availability:
NEW FOR 2025. LISTED AS A SPECIAL ORDER BY THE IMPORTER. FREE SHIPPING, WILL COME DIRECT FROM IMPORTER. CALL IF WISH TO PURCHASE ONE.
$1,080.00
Current Stock:
Adding to cart… The item has been added
Description

Designed for all hunting disciplines - from varmint to big game.

All models feature Hawke's H5 optics which boasts a stunning 24° ultra-wide field of view with generous 100mm eye relief.

The H5 illumination system features multi-LED technology for high intensity illumination.

  • Capped Low-Profile Turrets
  • 30mm Mono-tube chassis
  • Illumination
  • Ultra-wide Angle 24° FOV
  • High volume eyebox
  • 100mm eye relief
  • Multi-LED high intensity reticle
  • High grade, low dispersion Crown glass
  • 18 layer Fully Multi-Coated lenses
  • High torque rubber zoom ring
  • Fast focus eyebell

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke Warranty.

LR FD (12x)

A variant of the classic L4 reticle, the LR FD (12x) uses a more open outer post design to keep more of the target visible while aiming and offers extra aim points for holdover. The bright fiber optic center dot gives a sharp aim point for quick reference and target acquisition. The thick outer posts make visibility easy when hunting in low-light conditions. A fine upper post doesn't obstruct your view of the target.

SUBTENSIONS

The space between center dot and thick post measures 15" when aiming at a target 100yds away and on 12x magnification. This is equivalent to 50cm of spacing from center to post at 120m when on 12x magnification. Extra holdover aim points are included on the fine lower post to give graduation and accuracy when shooting at longer distances

  • More Reticle Information
Line Drawing

Objective Lens
56mm
Reticle
LR FD (12x)
Parallax
Fixed
Magnification
3 - 12x
Optical System
System H5
Focal Plane
SFP (Second Focal Plane)
Scope Tube
30mm
Illumination
6

Field of View
41.5 - 10.4ft @100yds
13.8 - 3.5m @100m
Field of View (°)
7.9 - 2
Eye Relief
4in
102mm
PX/Focus
100yds
91m
Exit Pupil
0.74 - 0.19″
18.7 - 4.7mm

Turret Type
Capped
Turret Caps
YES
Click Value
1⁄ 4MOA
Elevation Turret Clicks (max)
110 MOA
Windage Turret Clicks (max)
110 MOA

Ocular Type
Fast Focus
Power Selector
Rubber Coated Posi-Grip
Lens Coating
Fully Multi-Coated - 18 Layers

Length
13.7in
347mm
Weight
22.4oz
635g
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Reticle Booklet
  • Lens Cloth
  • Lens Covers
  • CR2032 Battery
