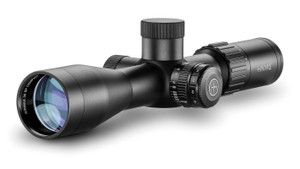

Airmax 30 SF Compact 4-16x44 AMX IR Reticle

HAWKE
SKU:
13210
Availability:
FREE SHIPPING, WILL COME DIRECT FROM IMPORTER
$839.00
Current Stock:
Adding to cart… The item has been added

Specialist scopes designed by airgunners for airgunners!

Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.

  • Capped Target Turrets
  • 30mm Mono-tube chassis
  • Wide Angle
  • Side Focus
  • Illumination
  • 16 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell
  • AMX reticle designed for airguns

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke Warranty.

AMX Reticle

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Half Mil Dot spacing on the lower post provides increased aim points for long shots.

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

  • More Reticle Information
Line Drawing

Objective Lens
44mm
Reticle
AMX IR
Parallax
Side Focus
Magnification
4 - 16x
Optical System
System H2
Focal Plane
SFP (Second Focal Plane)
Scope Tube
30mm
Illumination
6 Levels with Off Positions In-between - Red

Field of View
32.8 - 8.2ft @100yds
10.9 - 2.7m @100m
Field of View (°)
6.2 - 1.6
Eye Relief
3in
76mm
PX/Focus (Error free from)
10yds - ∞
9m - ∞
Exit Pupil
0.43 - 0.11″
11 - 2.8mm

Turret Type
Target
Turret Caps
YES
Click Value
1 10MRAD
Elevation Turret Clicks (max)
20 MRAD
Windage Turret Clicks (max)
20 MRAD

Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip
Lens Coating
Fully Multi-Coated - 16 Layers

Length
11.7in
296mm
Weight
21.9oz
621g
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Reticle Booklet
  • Lens Cloth
  • Lens Covers
  • 3" Sidewheel
  • CR2032 Battery
