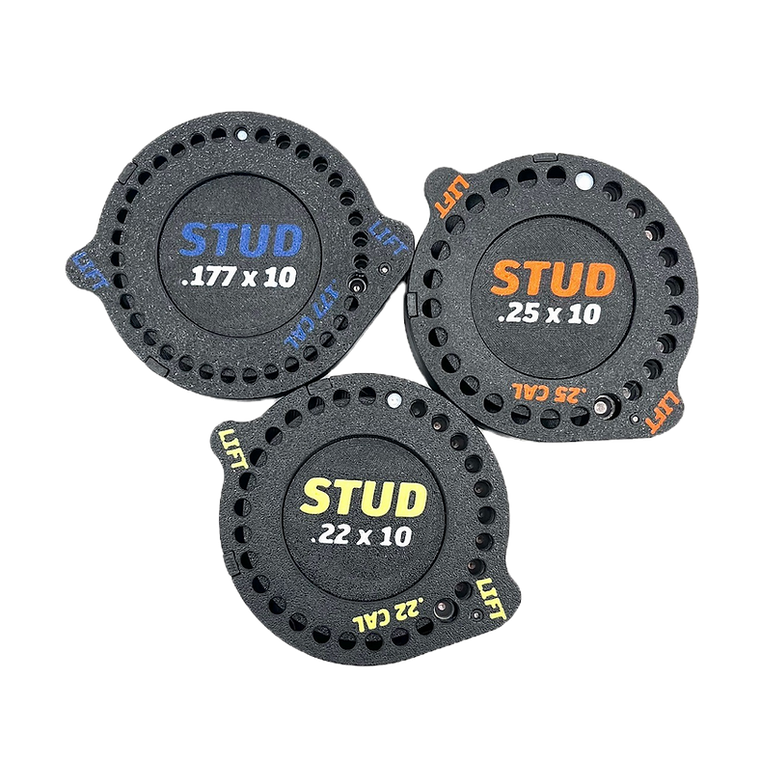

(1O Round) STUD Magazine for - FX Impact M2,3,4

Fits: FX Impact M2, M3, M4

• Australia-Compliant 10-Round Magazine - This magazine holds exactly 10 rounds, aligning with current Australian restrictions on magazine capacity for self-loading air rifles (e.g., NSW and national alignment post-2025 reforms). Ideal for shooters seeking fully compliant accessories without exceeding standard limits.

• .177, .22, .25, caliber versions, will feed pellets or slugs up to 12mm (.472") in length.
• If using pellets in the magazine, do not use any type of "pin style" probe with a reduced front diameter. Damage to the pellet skirts will occur as the mag cycles. Any type of probe is acceptable when using slugs.
• The magazine will not feed "Flat top" pellets. Only Diabolo style pellets or slugs can be used in the magazine.
• The magazine will not properly stage pellets (in the STUD Pocket) with oversized diameters, such as JSB DIABOLO EXACT MONSTER 25.39g etc. STUD Magazines are designed for standard diameter pellets/slugs only.
• Visual "Shots Remaining" indicator
• Magnetic Lid, no twisting of knobs like factory magazine
• Large internally driven, custom wound coil spring (no adjustments required)
• Rotor rides on (1) class 2RS, roller bearing, allowing glass smooth feeding of rounds.
• Works for both right or left hand shooters.

Stuff To Know:

1) They work with Slugs and Pellets (even the heavy ones):

These new STUD mags have a much taller center rotor, stronger drive spring and additional clearance that allows them to drive slugs up to 12mm (.472') in length. The factory magazines will not feed these large rounds because the (slug) length interferes with lid etc. They also are typically not powerful enough to reliably rotate the center rotors.

As the STUD magazines were specifically designed to fit and feed these larger rounds, they index correctly, and you can count on the magazine to do its job.

2) We have a nice "remaining rounds" indicator:

The STUD lid is not a clear solid piece like the factory mags. The STUD magazine has holes placed over each round position clearly showing the rounds remaining in the magazine.

We produce the rotor with a colored circle on the "stop lug" that is easily seen by the shooter as the mag advances.

We have also "cut-out" the center of the lid, which exposes the rotating STUD logo (as your cycle the mag. the logo spins). Why did we do this.... simple, it looks cool.

3) Main Rotor, ball bearing drive system:

The STUD magazine features a class 2RS ball bearing. This bearing allows very stable and precise movement and positioning of the rounds. This is in contrast to the factory mag that only uses inexpensive plastic to plastic surfaces that allow the rotor to bind, wobble and be generally unreliable at times.

4) Easy On/Off Lid:

The STUD magazine features a slick lid that easily comes off and on. The lid is held on with ((2) pairs) of powerful, neodymium magnets. These magnets are positioned by the locating pin and interlocking uprights (the same points we use to interface to the STUD loading systems).

When you get the lid anywhere near the locating features of the mag base, the lid basically sucks itself to the base. These magnets are strong enough to allow you to turn the mag lid down with it full of heavy slugs and the lid stays on (and the rounds stay in).

This lid design was a specific request from several of our customers that have a hard time rotating that center lock on the FX factory magazines. Taking the lid off a factory mag can be a real problem if you have gloves on or if you have any finger issues.

The STUD magazine eliminates these problems completely.
